USB3.0(Female to Male)
Jack interface: USB3.0 TYPE-A (Female To Male)
Contact material: copper alloy gold-plated
Rated current (maximum): 1A (25 ℃)
Vacuum leakage rate: less than 1 * 10-9 Pa * m3/s
Working temperature range: -20~85 ℃

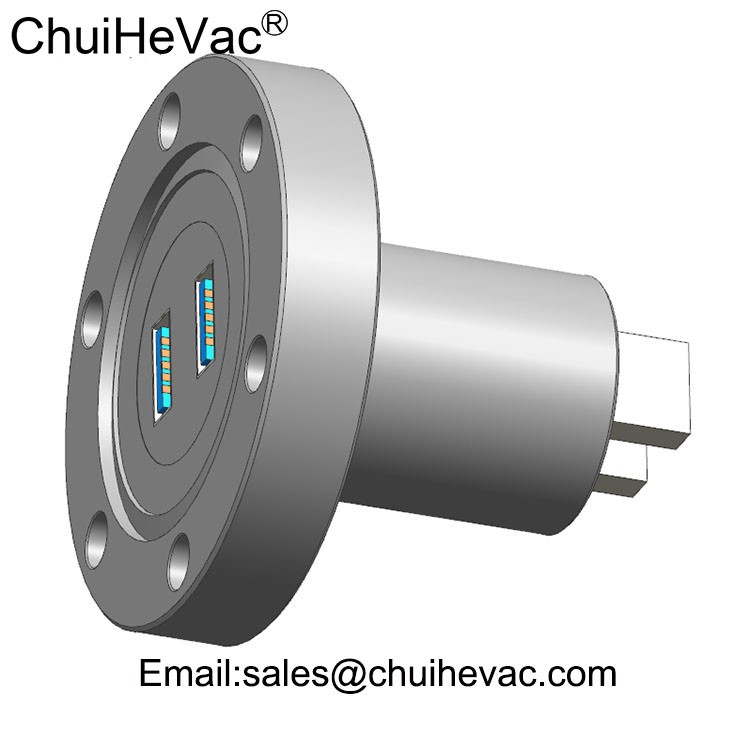

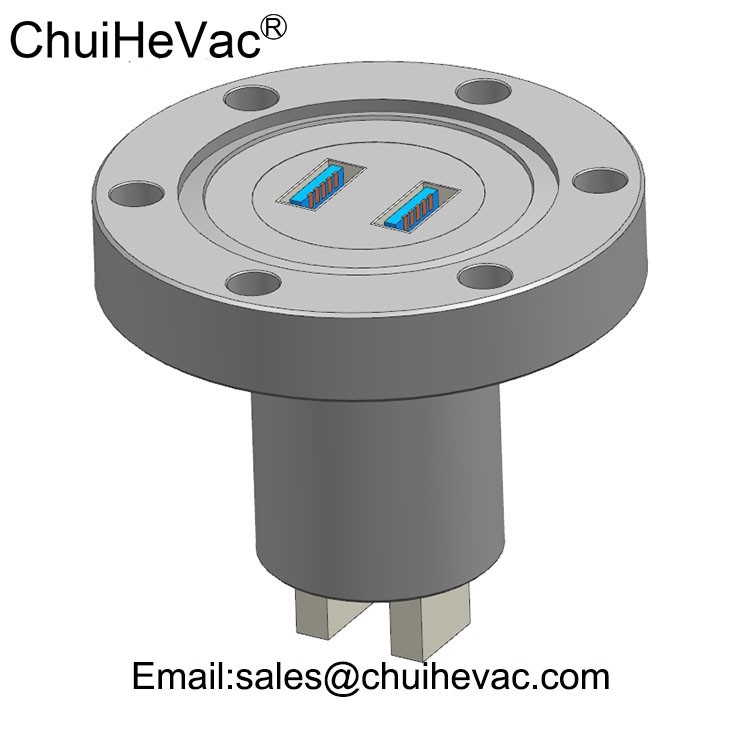

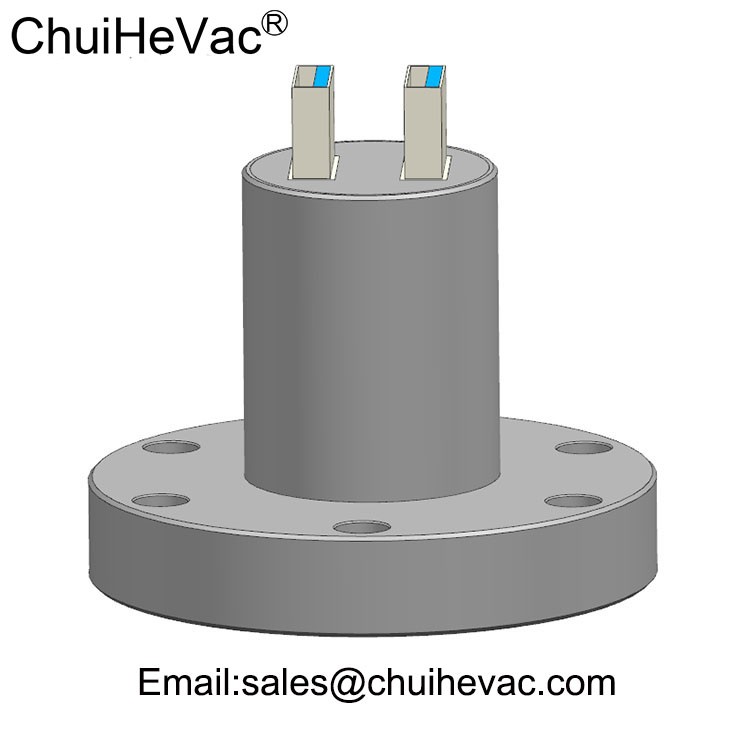

CF40 Flange with Two Ports USB3.0 Feedthroughs
USB3.0(Female to Male)
Jack interface: USB3.0 TYPE-A (Female To Male)
Transmission speed: >200MB/s
Base material: SUS304
Contact material: copper alloy gold-plated
Rated current (maximum): 1A (25 ℃)
Atmospheric withstand voltage: 500VAC (1min)
Vacuum leakage rate: less than 1 * 10-9 Pa * m3/s
Working temperature range: -20~85 ℃
