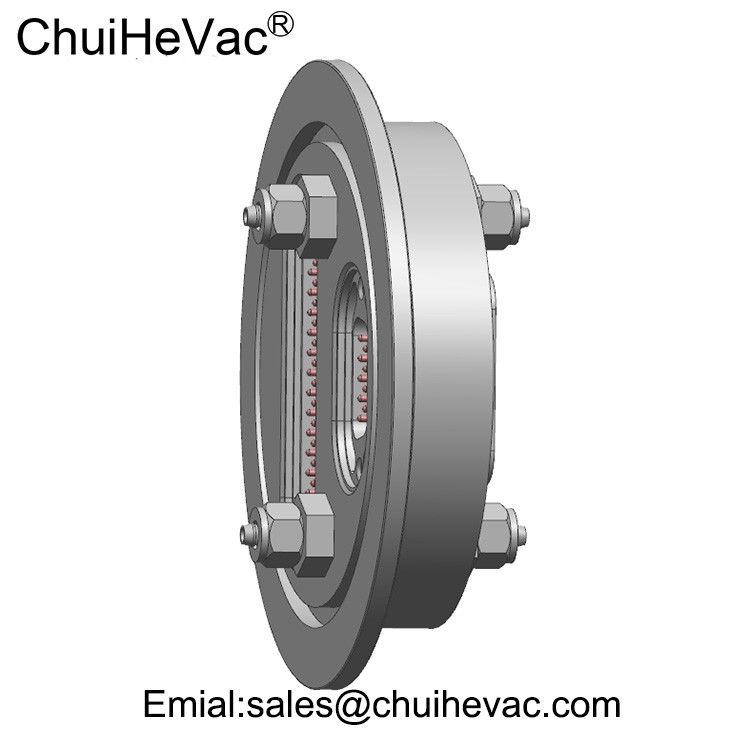

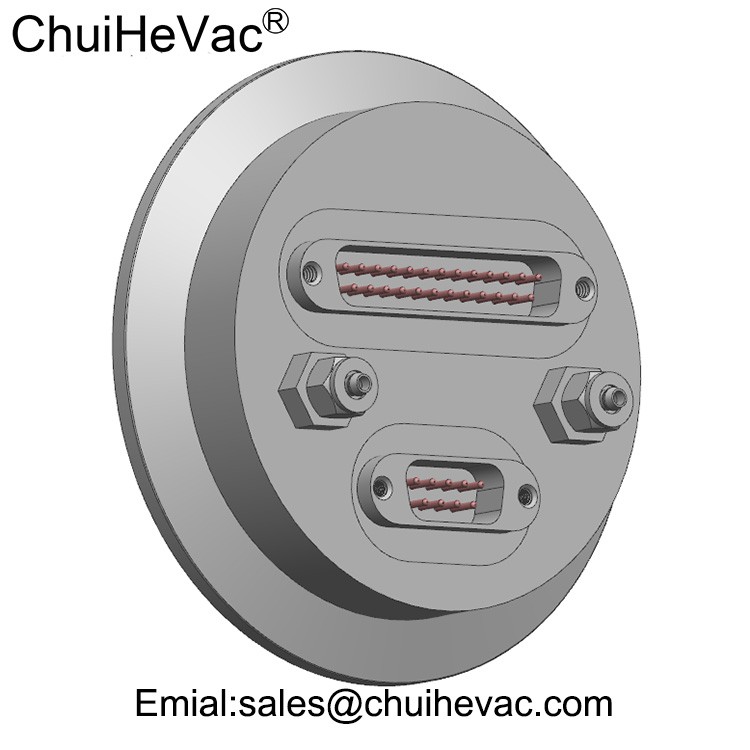

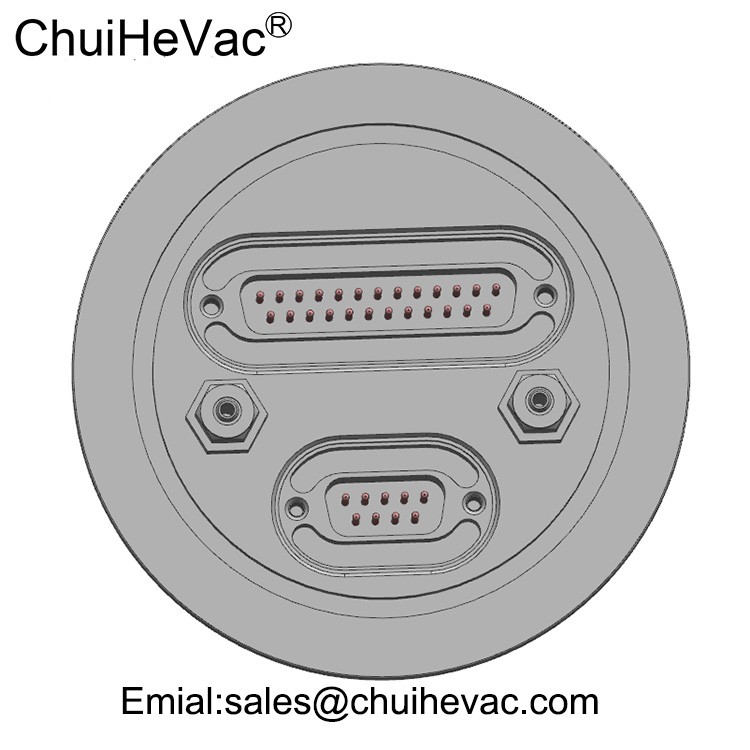

Customized KF63+1DB9+1DB25+4QPC Connector Feedthroughs
Both vacuum and atmospheric sides can be plugged and unplugged
Atmospheric withstand voltage value: 500VAC
Maximum working voltage/current: 100V/5A (male needle diameter 1.0mm)
Flange material: stainless steel SUS304
Vacuum leakage rate: less than 1 * 10-9 Pa * m3/s
Working temperature range: -40~200 ℃
Customized KF63+1DB9+1DB25+4QPC Connector Feedthroughs
Both vacuum and atmospheric sides can be plugged and unplugged
Atmospheric withstand voltage value: 500VAC
Maximum working voltage/current: 100V/5A (male needle diameter 1.0mm)
Flange material: stainless steel SUS304
Vacuum leakage rate: less than 1 * 10-9 Pa * m3/s
Working temperature range: -40~200 ℃
